The production line is applied to produce honeycomb paper core and honeycomb paper panel. The line is automatic from raw material roll to the finished honeycomb paper panel.
The production line is applied to produce honeycomb paper core and honeycomb paper panel. The line is automatic from raw material roll to the finished honeycomb paper panel.
Core paper (width*roll diameter) | 2000mm*φ1200mm |
Cover paper (width *roll diameter) | 1600*φ1200mm |
Paper width | 2000mm |
Paper core thickness | 10-60mm |
Finished board thickness | 10-60mm |
Finished board length | 500-3000mm |
Production speed | 0-15m/min |

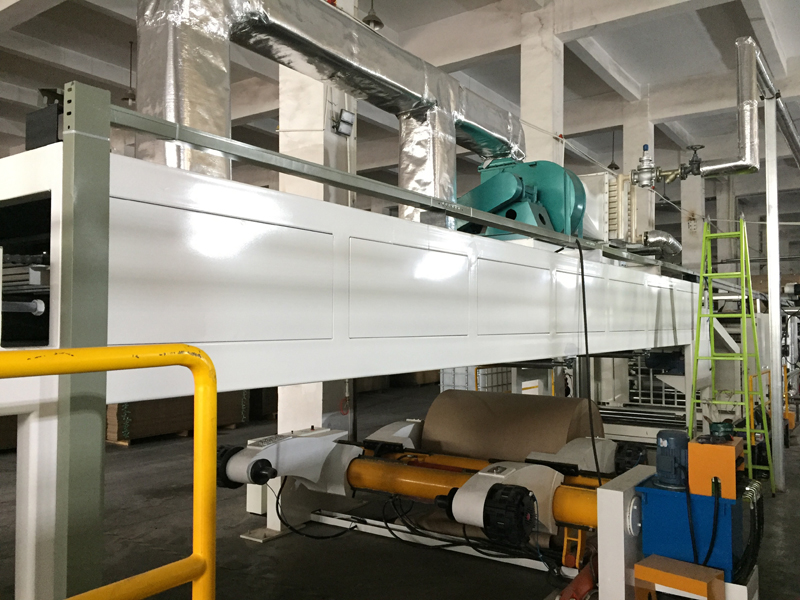

Heating type | Electrical heating, hot air circulation |
Power | 170kw |

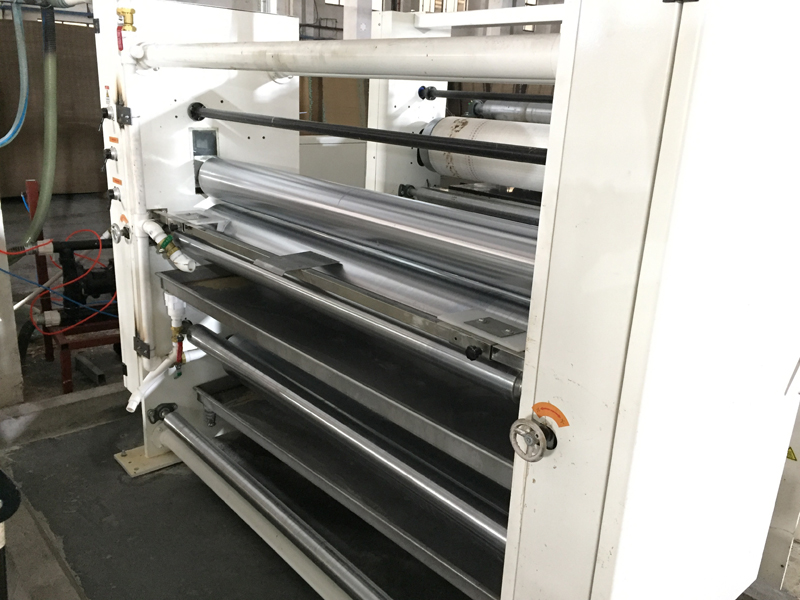

the scraper roller uses an eccentric wheel to adjust the amount of glue

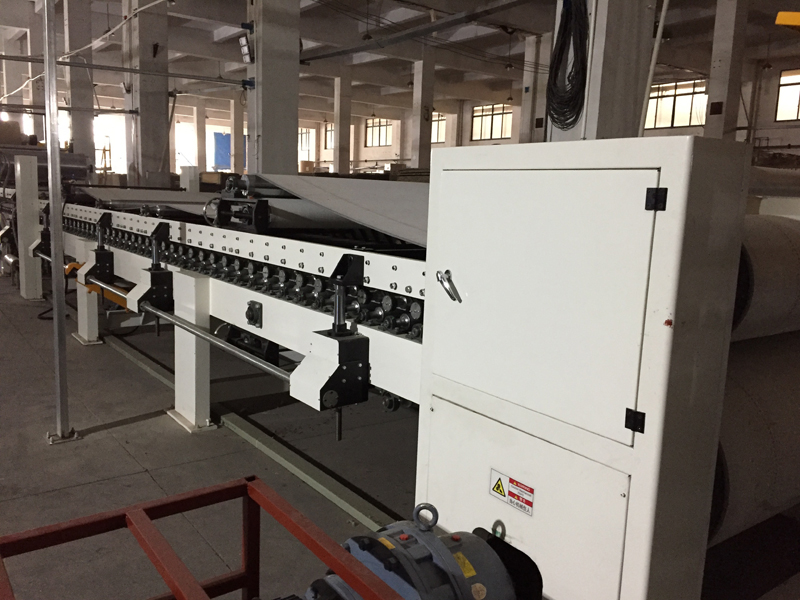

the bottom paper is laminated first, the top paper is not laminated, the hot plate fully dry the paper core and the bottom paper, and the paperboard will not be damaged due to the water vapor generated by the high temperature.

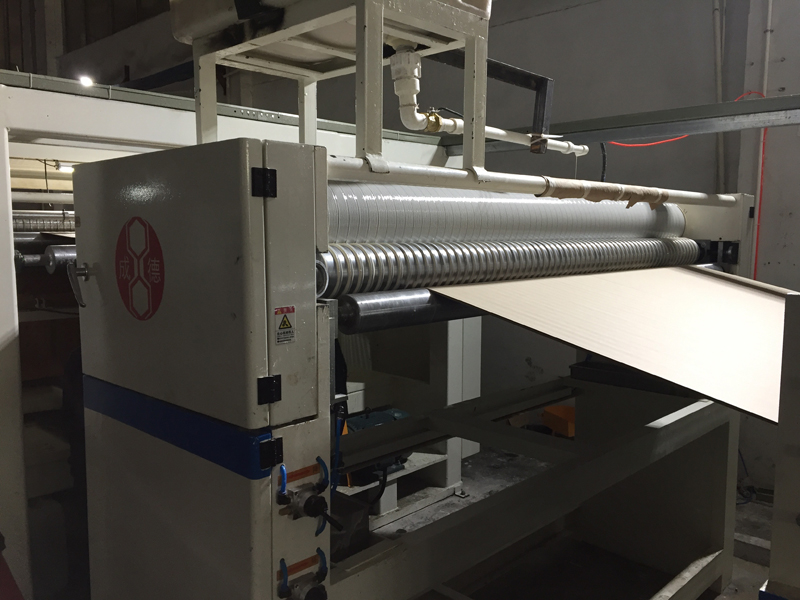

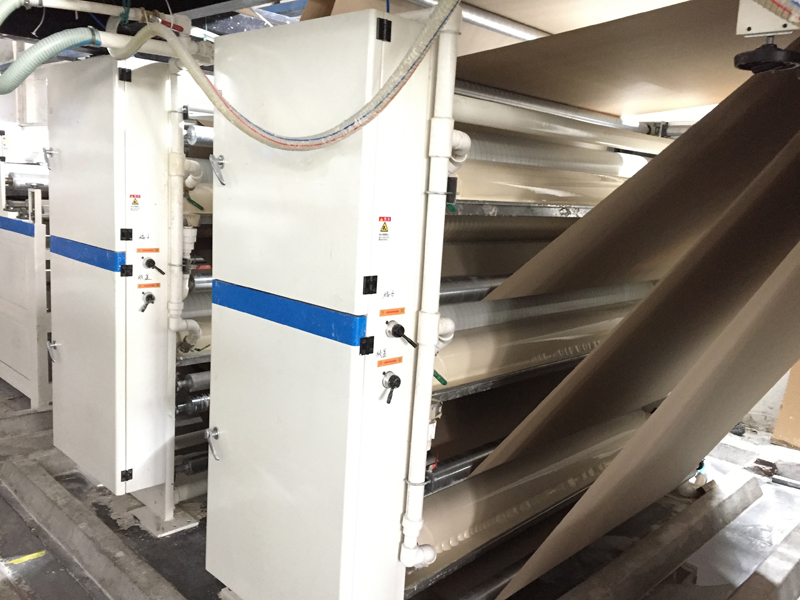

The gluing machine provides glue for the upper surface paper lamination and the paper core.
