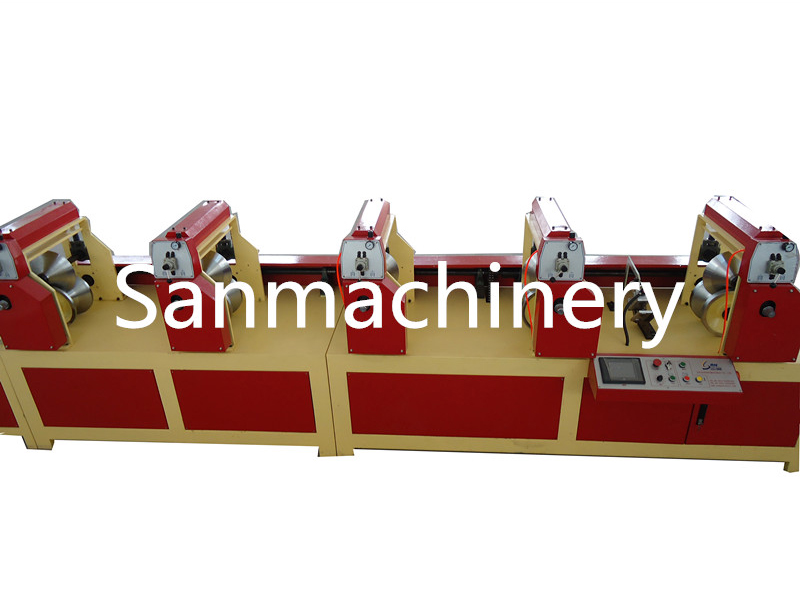

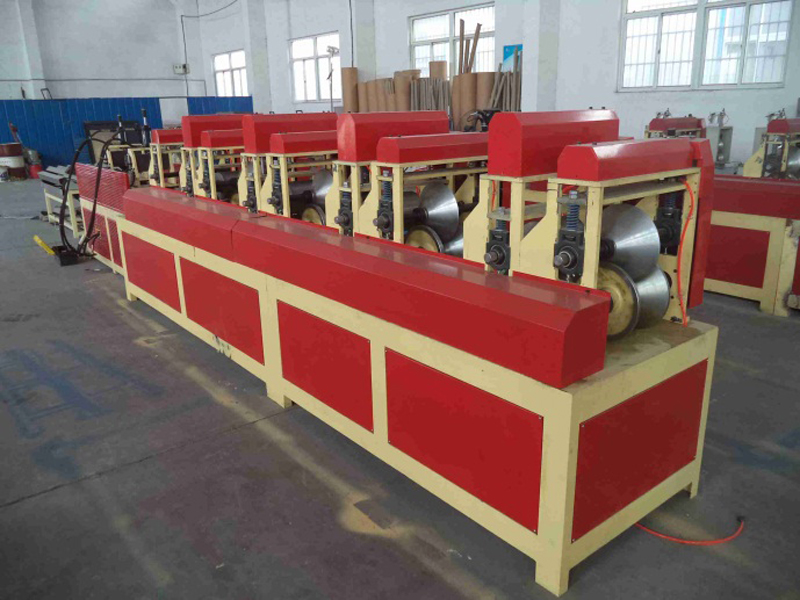

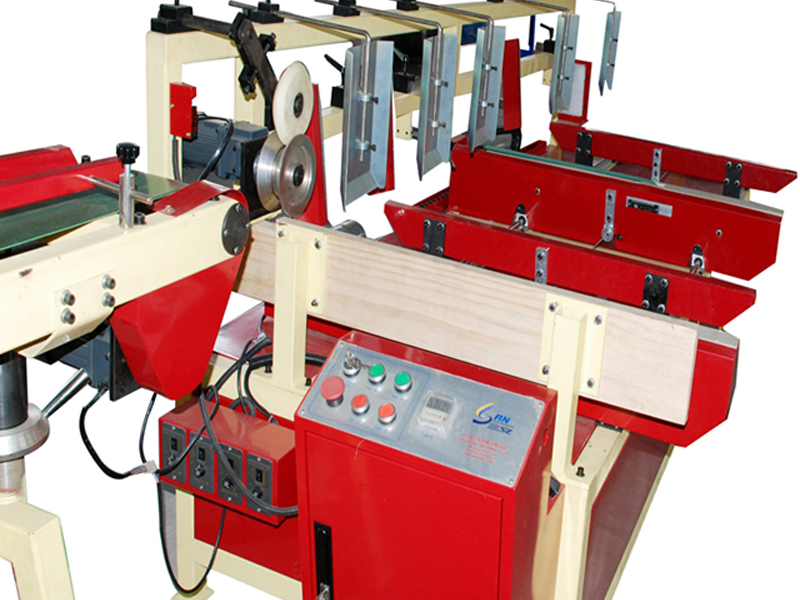

Three-Purpose Paper Angle Board Machine

SANPPL-120DL is a regular machine, by changing molds, SANPPL-120DLU and SANPPL-120DLF can produce 2 and 3 types of protectors by changing the position of molds without changing them. It can produce U protectors, V protectors and flat board. Max. speed is 30m/min.

Get a Quote

Products

No.33 Lianyungang Road, Qingdao, China
Email: davidgong@sanmachinery.com
Tel: +86-532-55570881
Free Quote

Specification of Three-Purpose Paper Angle Board Machine

Model	SANPPL-120DLU, SANPPL-120DLF
Paper protector production speed	0~30m/min
Size of paper protector	30~100mm
Thickness	2~8mm
Quantity of layer	13 layers (including 1 layer surface paper)
Cutting mode	driven by servo motor
Cutter quantity	single blade
Paper stands	Composite paper stands

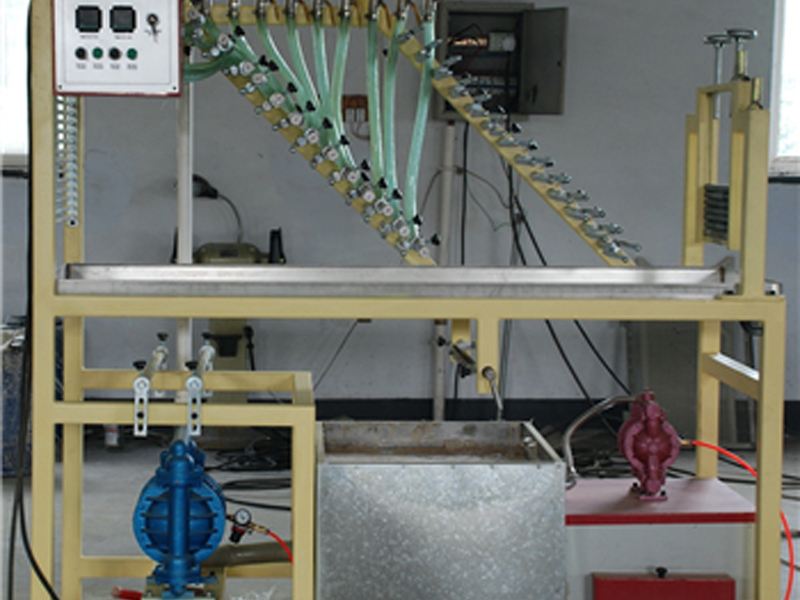

Gluing system	single/double side gluing system

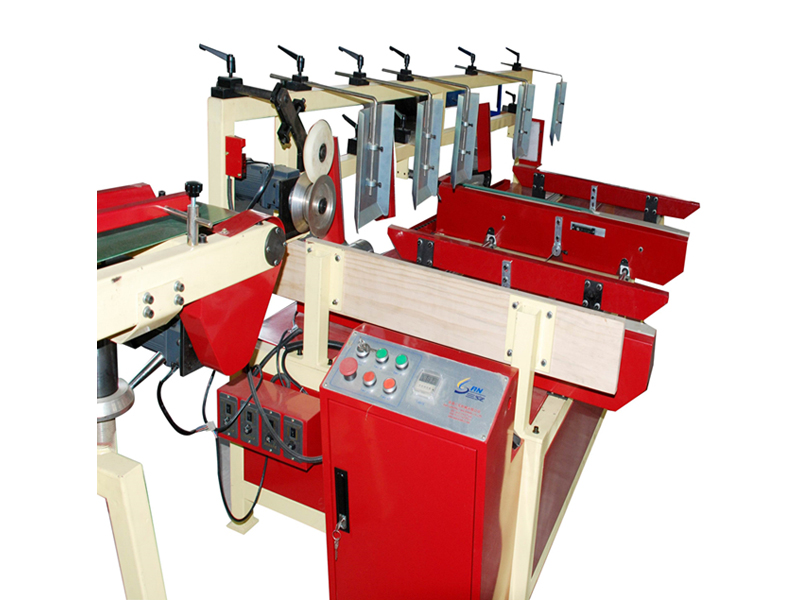

Collecting table	automatic

Advantages of Three-Purpose Paper Angle Board Machine

Produce different shapes of paper protector by changing the position of molds

Pneumatic press system, easy to change molds

Touch screen and HMI servo system, the operation is more humanized. Adjust air cylinder is more convenient.

Automatic alarming, malfunction prompt, easy to adjust and maintain

Details of Three-Purpose Paper Angle Board Machine

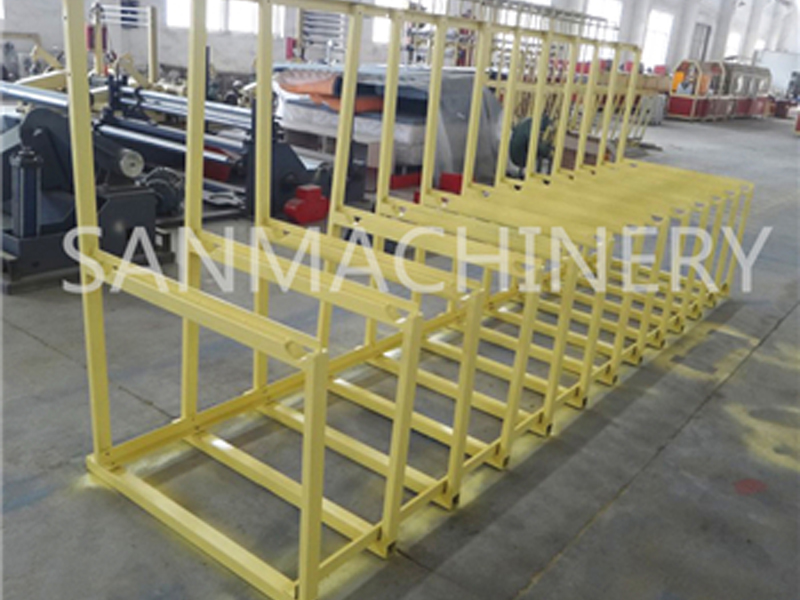

composite paper stands, hoist can be added. it's convenient to load paper rolls.

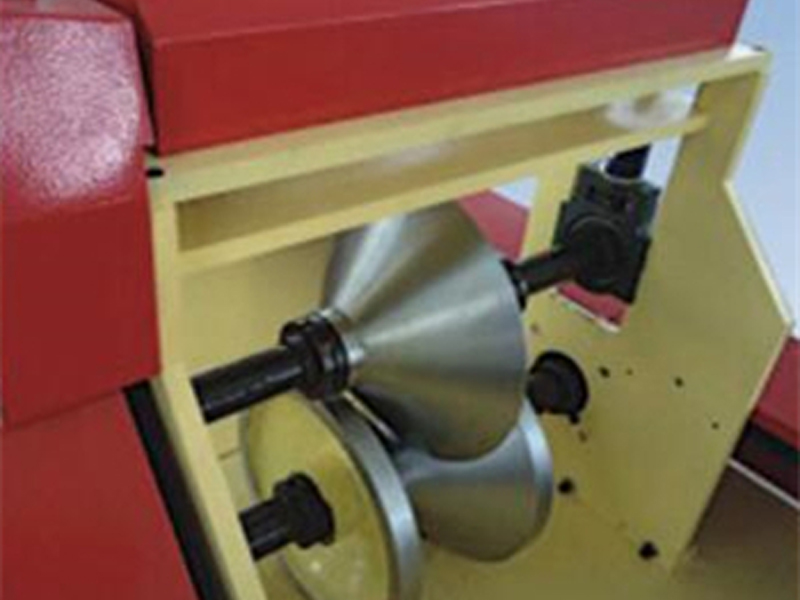

with pneumatic pressing system, it's easy to change molds. by changing different molds, it can produce various shapes edge protectors.

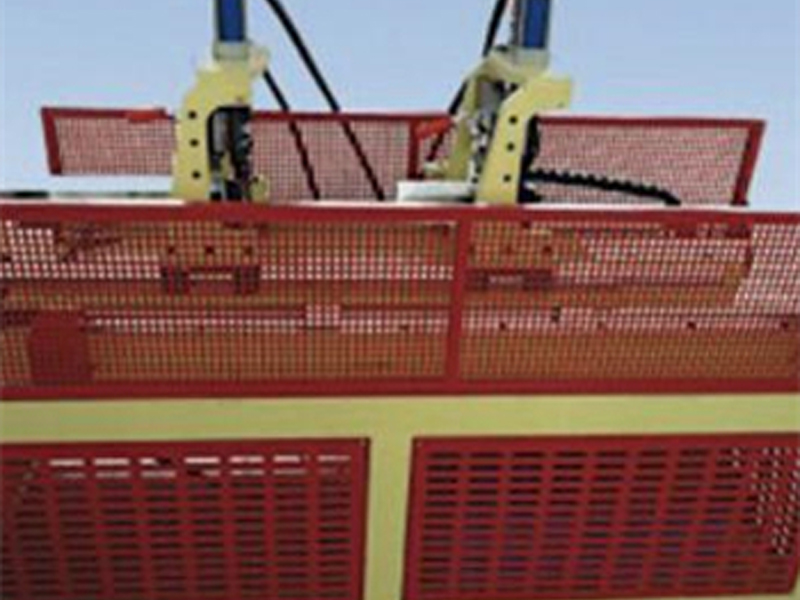

double groups hydraulic cutting system, higher frequency, the max. frequency is 80 times/min.
