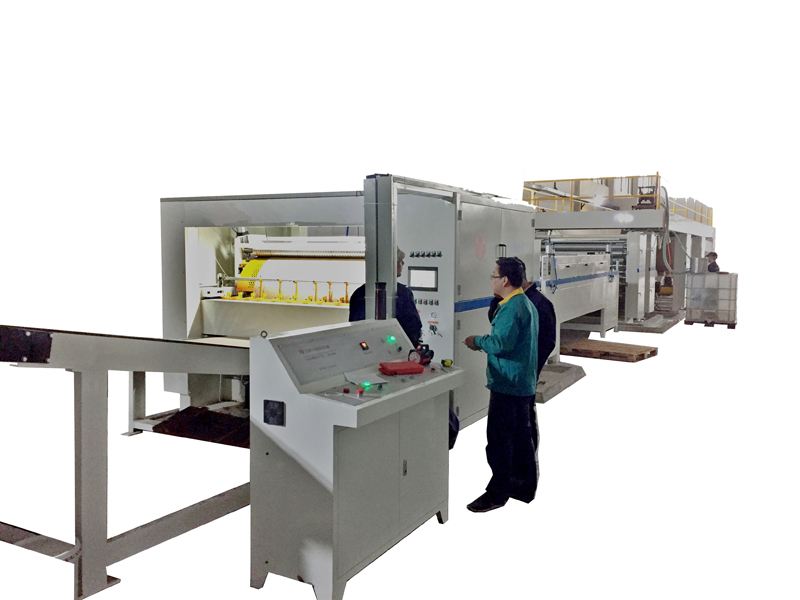

High Speed Paper Honeycomb Core Machine

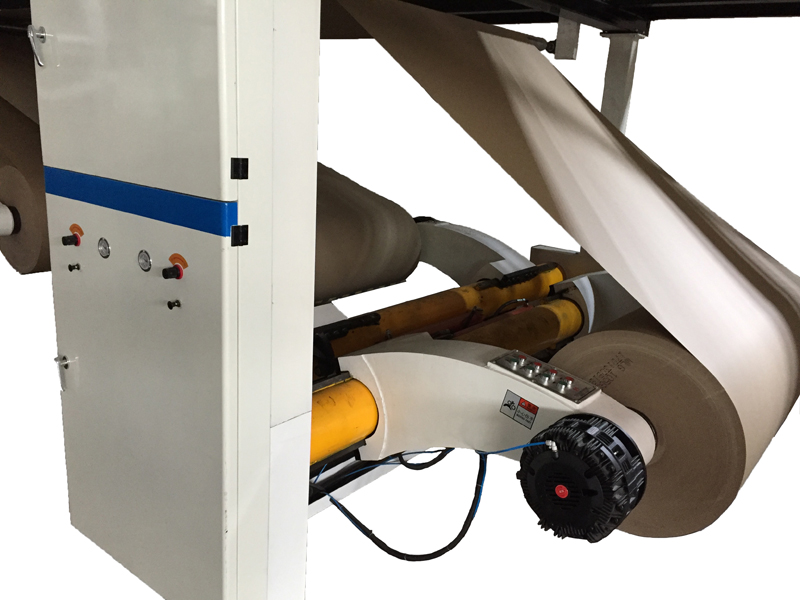

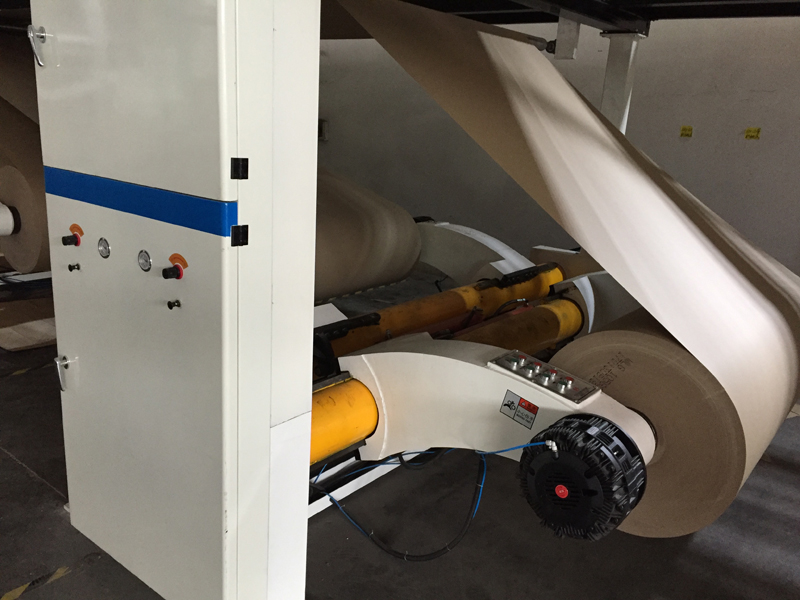

This honeycomb making machine is for honeycomb paper core production. And this honeycomb paper core machine is automatic from raw material roll to the honeycomb paper core. 8 paper rolls can work simultaneously.


Get a Quote

Contact Us

Specifications of High Speed Paper Honeycomb Core Machine

Model

CX-2000

Type

Continuous type

Length of the total line

33m

Power supply

66kw

Cutting speed

0-720cuts/min

Paper rolls quantity

8 rolls

Production output

About 900kg/hour (for 30mm thickness and 140gsm paper)

Max. Width of paper roll

2000mm

Max. diameter of paper roll

1500mm

Applicable core diameter

Φ76mm

Applicable paper

100-140gsm

Heating type

steam heating, hot air circulation, the temperature of steam needs 160℃.


Advantages of High Speed Paper Honeycomb Core Machine

  • 8 paper rolls can work simultaneously

  • the decorative board of the honeycomb paper core is raised, the sides are curved, the paper platform guardrail is raised

  • Two sets of honeycomb gluing mechanisms with different cell sizes (the cell size is determined by the user) 4.5mm and 6mm paper glued simultaneously

  • The upper blade rest is made of steel castings, and the blade is made of high-speed steel which imported from Japan, with a hardness of HR 63 degrees. The lower blade rest is made of aluminum alloy, which is light in weight and high in strength.

  • The cutting speed normally starts at 700 cuts/min, the design speed is 720 cuts/min


Details of High Speed Paper Honeycomb Core Machine

  • Details of High Speed Paper Honeycomb Core Machine
  • Details of High Speed Paper Honeycomb Core Machine

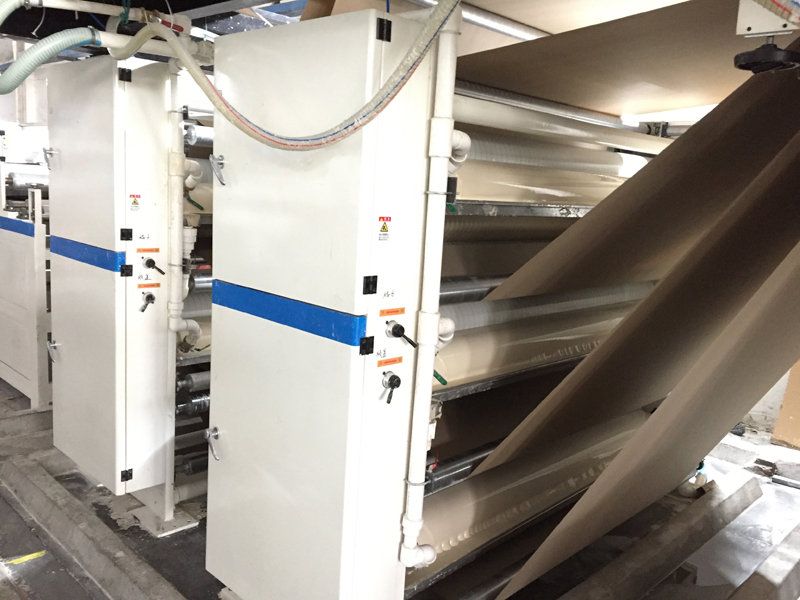

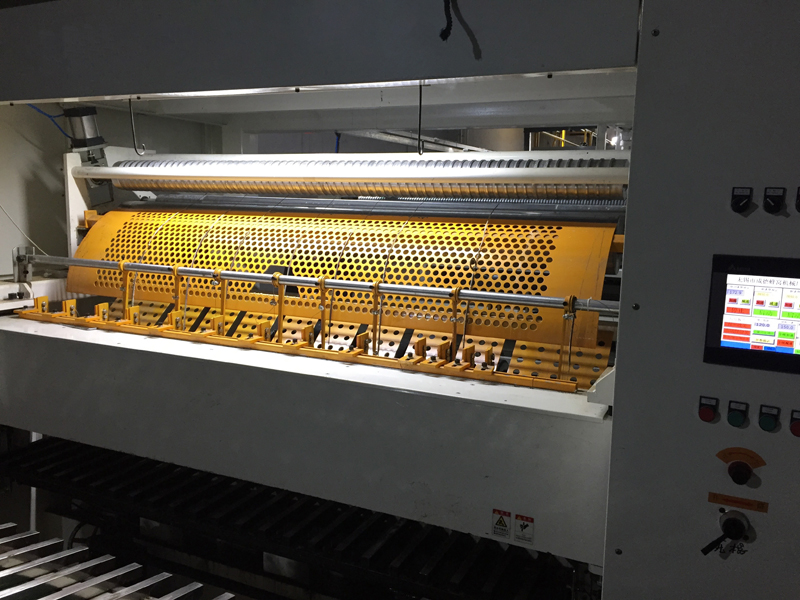

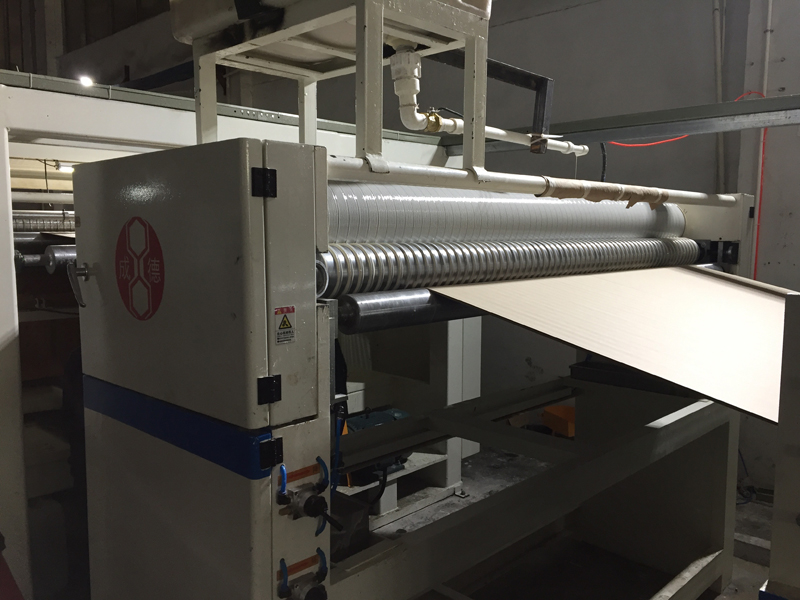

    Each tooth roller can be transverse  adjusted to adjust the cell shape of honeycomb

    Gluing  bucket adopts pneumatic lifting

    Can adjust the frequency and speed individually


  • Details of High Speed Paper Honeycomb Core Machine
  • Details of High Speed Paper Honeycomb Core Machine
  • Details of High Speed Paper Honeycomb Core Machine
  • Details of High Speed Paper Honeycomb Core Machine

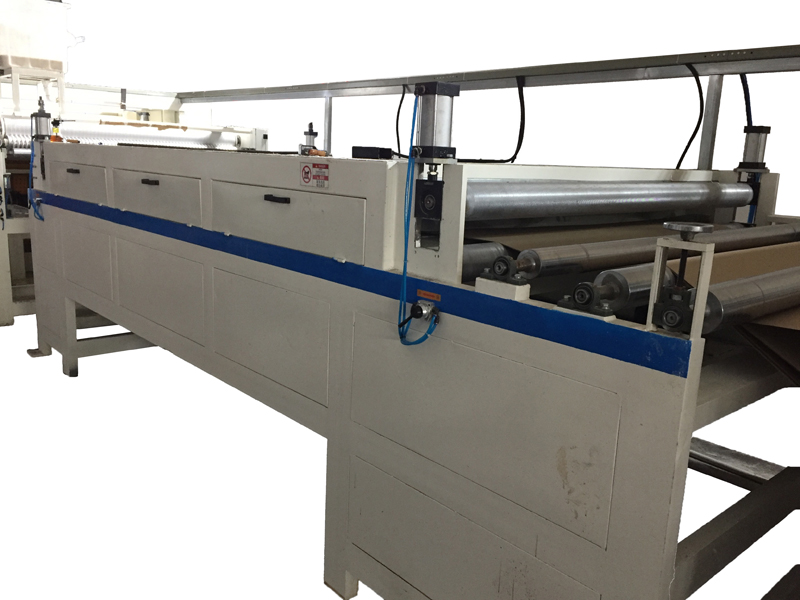

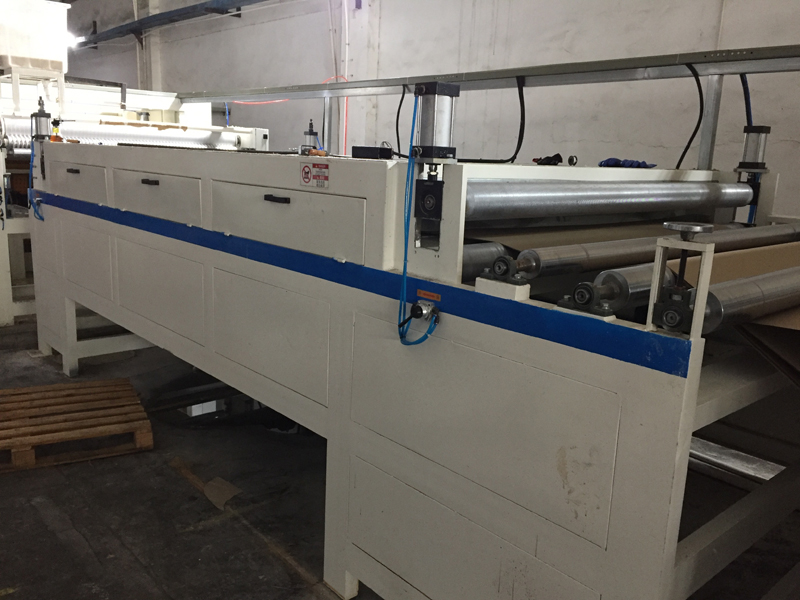

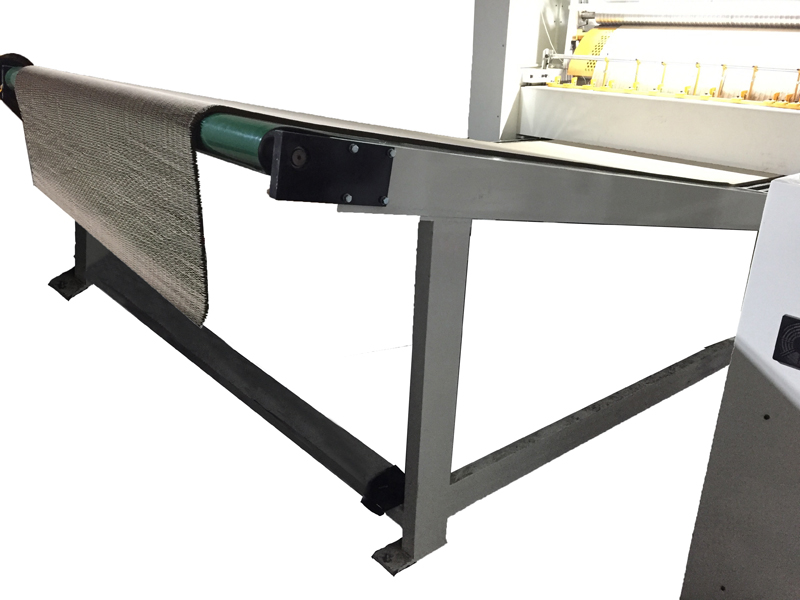

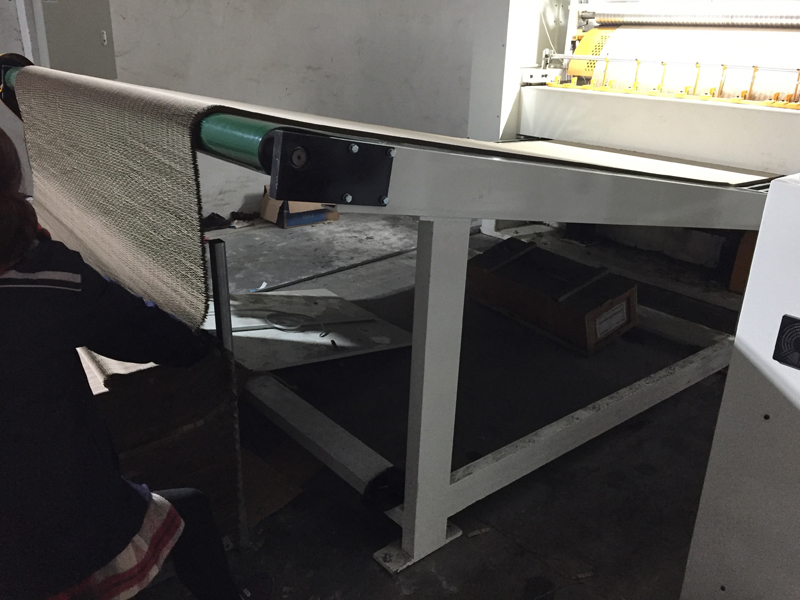

    Paper core is conveyed stably (Conveyor belt adopts NBR)

    Can adjust the frequency and speed individually
