Normal Speed Honeycomb Paper Core Machine

New CE Fully Automatic PLC control normal speed honeycomb paper core machine is to make endless honeycomb paper core, this normal speed honeycomb paper core machine just needs two operators. Human-machine interface, PLC control, and high auto to increase the efficiency. From paper goes into cardboard goes out, it is all completed in a fully automated production line. Only 2 to 3 operators needed, high paper utilization, advanced technology.


Get a Quote

Contact Us

Specifications of Normal Speed Honeycomb Paper Core Machine

Model

CX-1600

Type

Continuous type

Length of the total line

32m

Power supply

60KW

Height of honeycomb paper

6-100mm

Cutting speed

380cuts/min

Paper roll quantity

6 rolls

Production output

(for 30mm thickness and 140gsm paper)

532kg/hour

Width of paper roll

1600mm

Diameter of paper roll

1300mm

Applicable hole size

4-30mm (one size is along with machine)

Applicable paper

120-170gsm

Air compressor

0.7Mpa, 0.5CBM

Heating method

electric heating


Advantages of Normal Speed Honeycomb Paper Core Machine

normal speed honeycomb paper core machine is a fully automatic honeycomb production line to produce honeycomb paper core continuously. No need for paper cutter and honeycomb paper connecting machine. Production flow is paper rolls feeding-gluing—laminating and drying-cutting—stacking.

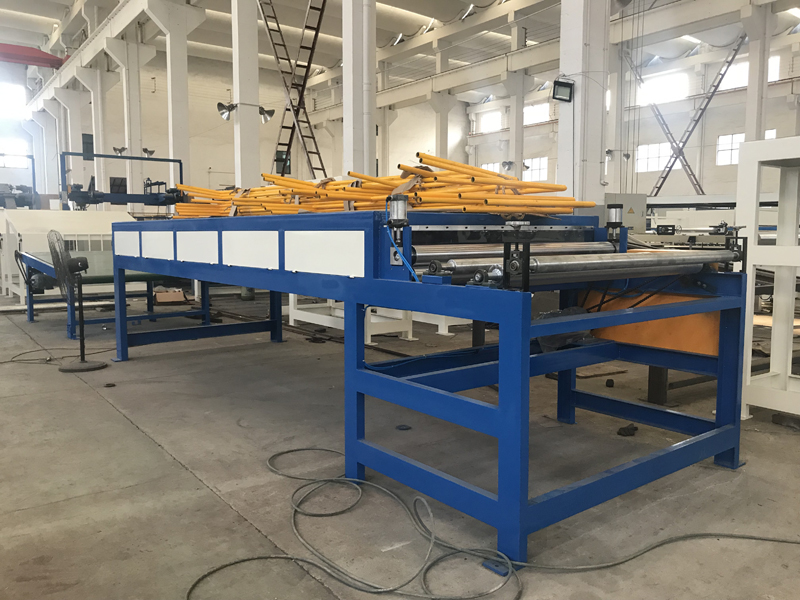

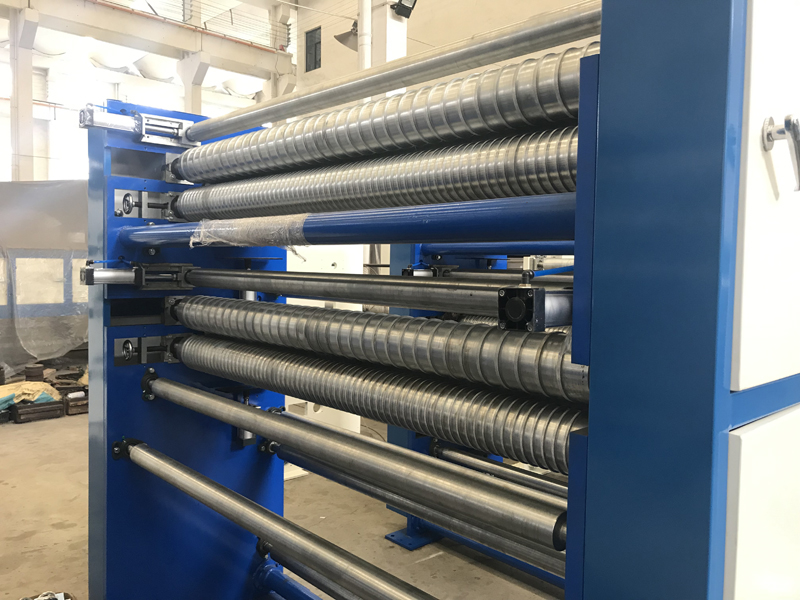

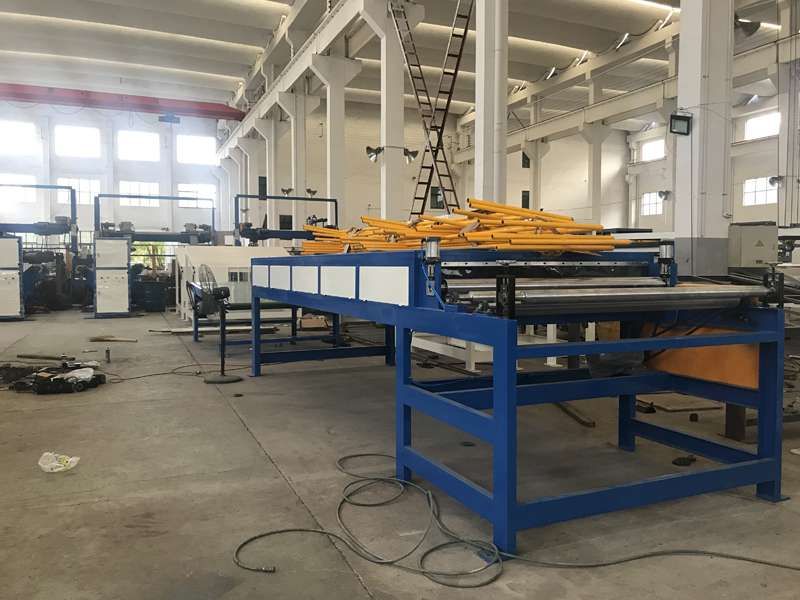

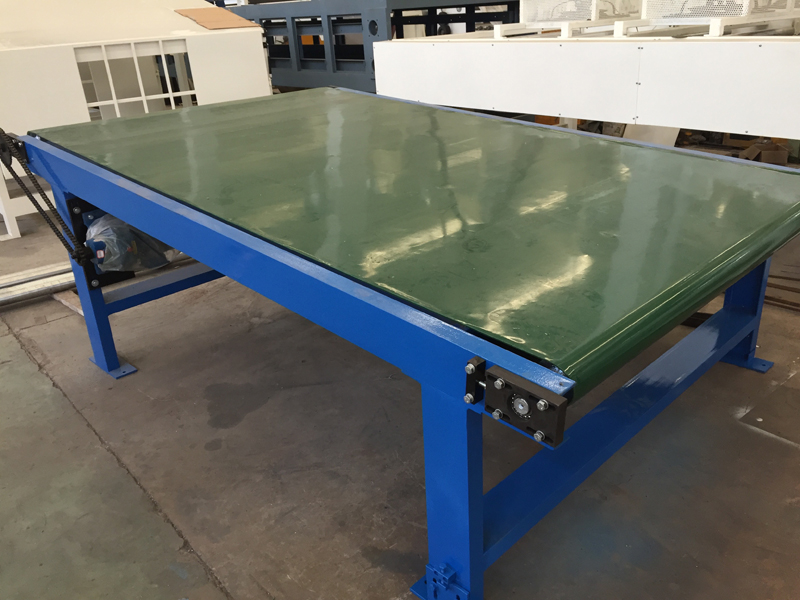

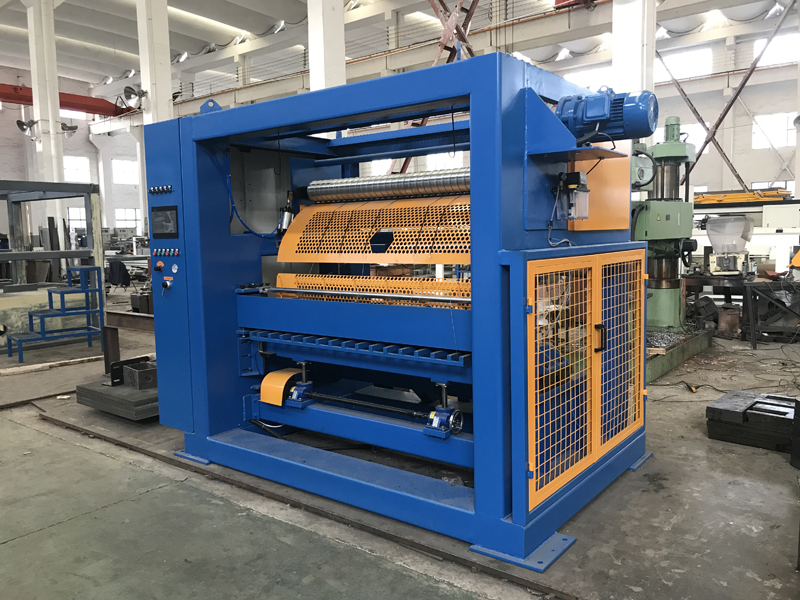

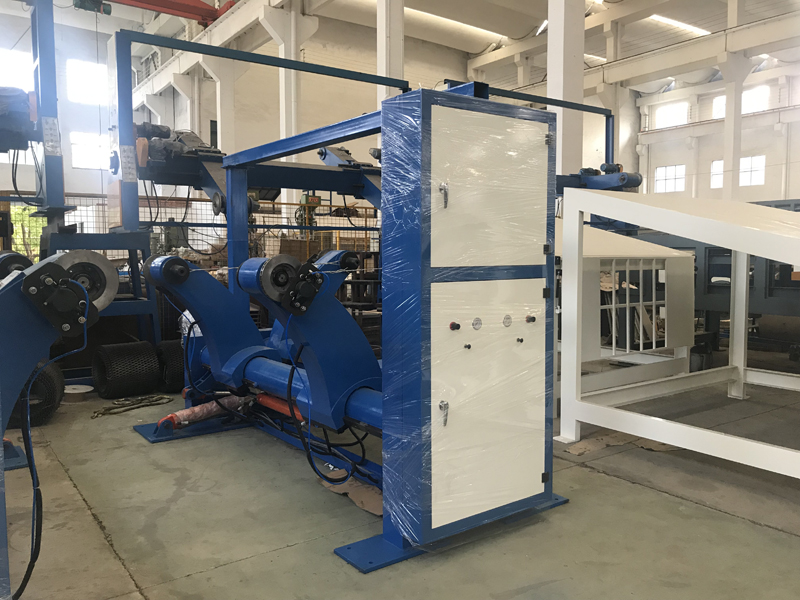

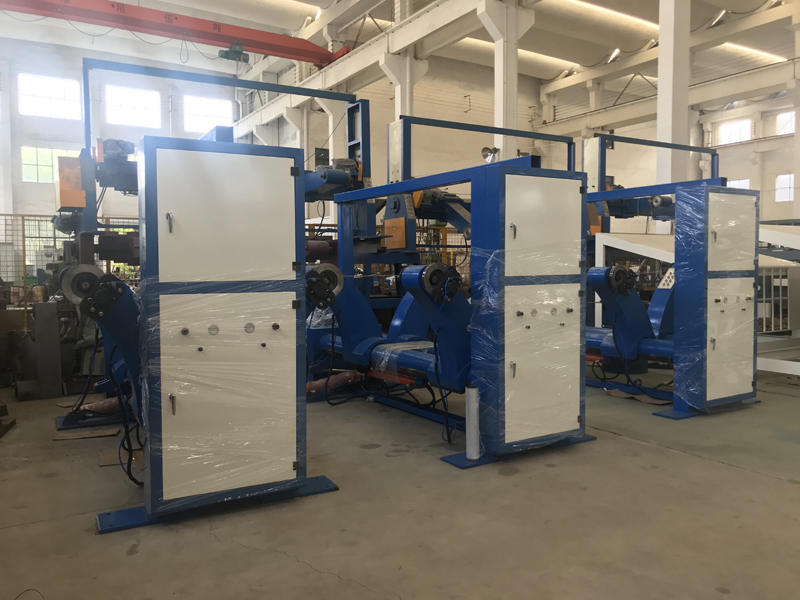

Details of Normal Speed Honeycomb Paper Core Machine

  • Details of Normal Speed Honeycomb Paper Core Machine
  • Details of Normal Speed Honeycomb Paper Core Machine
  • Details of Normal Speed Honeycomb Paper Core Machine
  • Details of Normal Speed Honeycomb Paper Core Machine
  • Details of Normal Speed Honeycomb Paper Core Machine
