Normal Speed Honeycomb Paperboard Lamination Machine

Normal speed honeycomb paperboard lamination machine is our self-developed latest honeycomb paper panel making machine. The line is high-automated, less labored, highly efficient and least waste. It’s processed from ready honeycomb paper core to the finished honeycomb paper panel. It's producing honeycomb panels continuously for the whole process.

The basic material is corrugated paper, kraft paper or tea-color paper and the glue is white latex.


Get a Quote

Contact Us

Specifications of Normal Speed Honeycomb Paperboard Lamination Machine

Technical specification

Model

FBJD-1300

Max.panel width

1300mm

Min.panel width

500mm

Panel thickness

8-80mm

Production speed

0-15m/min

Heating type

Electrical heater, hot air circulation

Power supply

120kw,380v,50hz

Total length

35m

Air supply

≥0.5m³,air pressure≥8kg/cm2

Applicable paper

180-400gsm corrugated medium or kraft paper



Advantages of Normal Speed Honeycomb Paperboard Lamination Machine

  • Adjust paper core expanding speed by changing the frequency and speed according to different cell sizes.

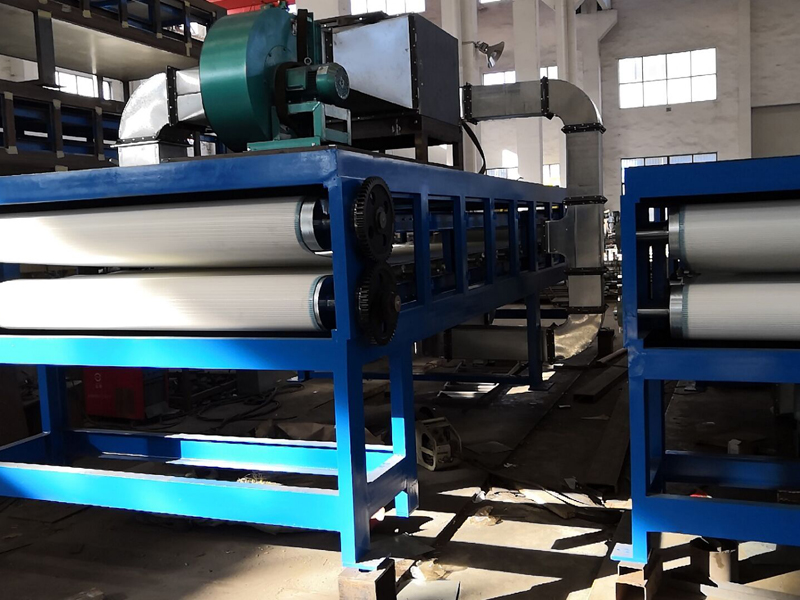

  • Paper core pressing can improve the adhesion when paper core and surface paper laminating.

  • Can adjust frequency and speed individually.

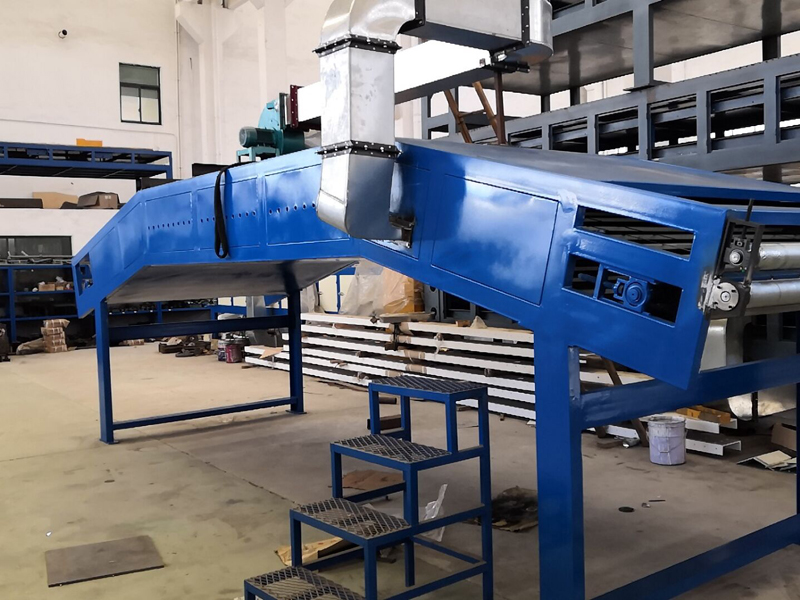

  • Electrical heating,hot air circulation,paper core evenly heated (power: 24kw).

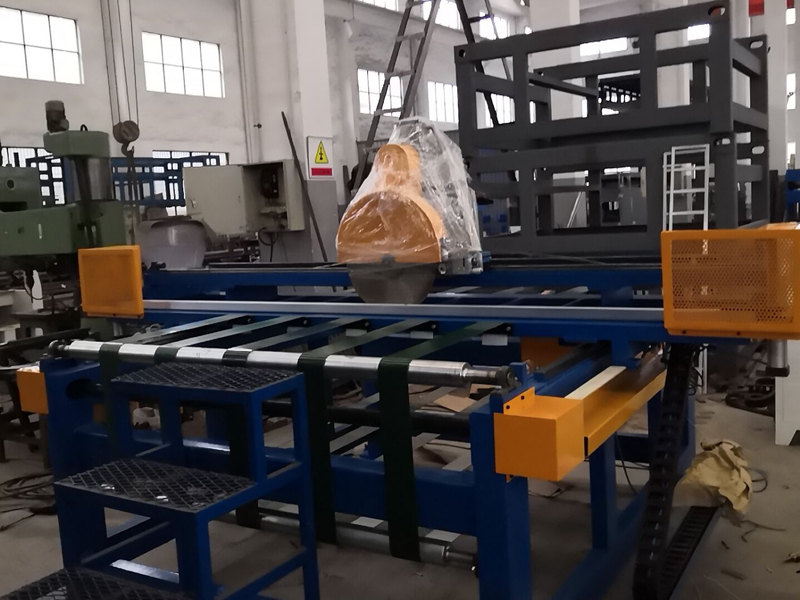

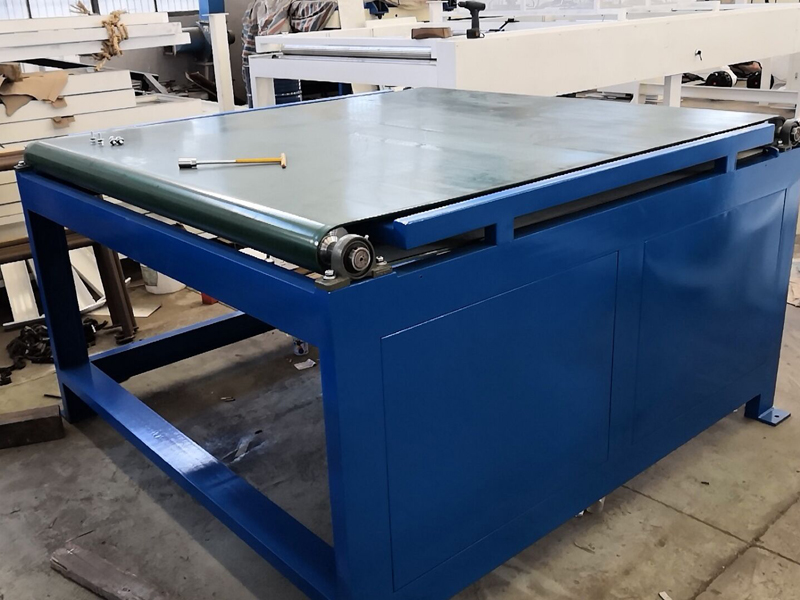

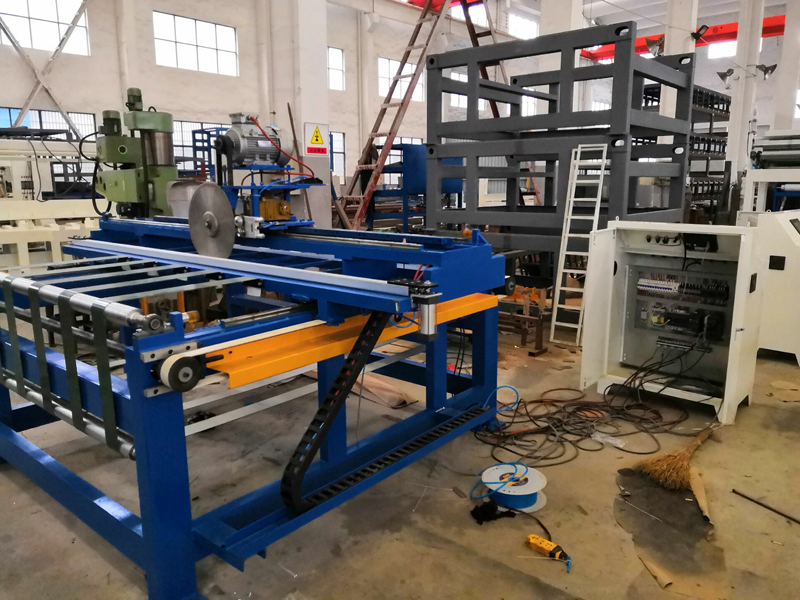

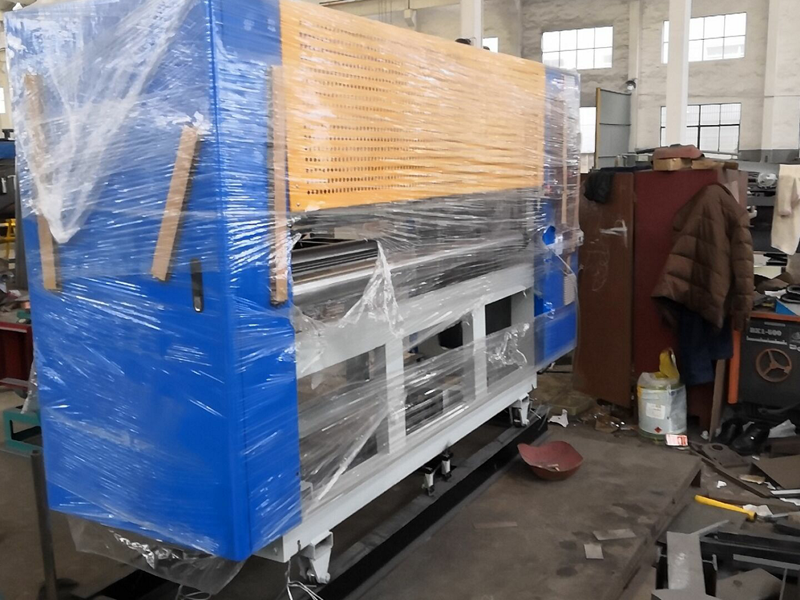

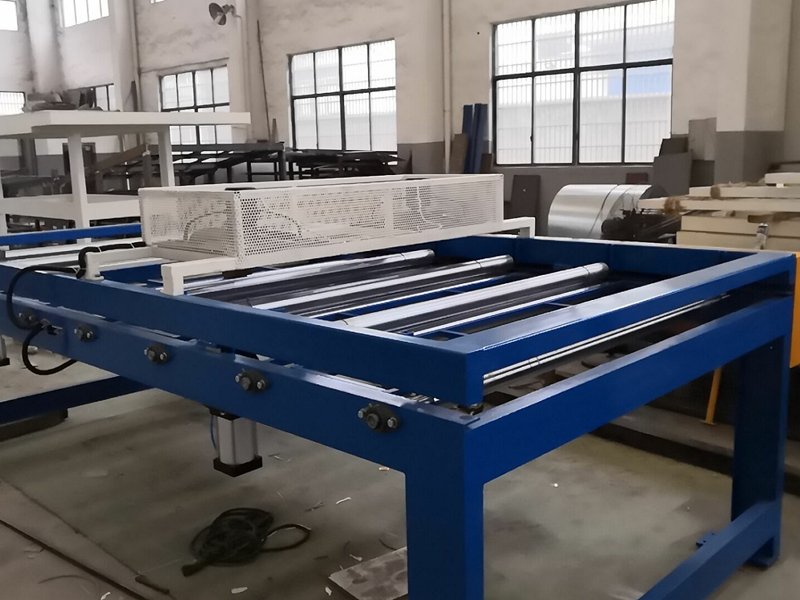

Details of Normal Speed Honeycomb Paperboard Lamination Machine

  • Details of Normal Speed Honeycomb Paperboard Lamination Machine
  • Details of Normal Speed Honeycomb Paperboard Lamination Machine
  • Details of Normal Speed Honeycomb Paperboard Lamination Machine
  • Details of Normal Speed Honeycomb Paperboard Lamination Machine
  • Details of Normal Speed Honeycomb Paperboard Lamination Machine
  • Details of Normal Speed Honeycomb Paperboard Lamination Machine
  • Details of Normal Speed Honeycomb Paperboard Lamination Machine
